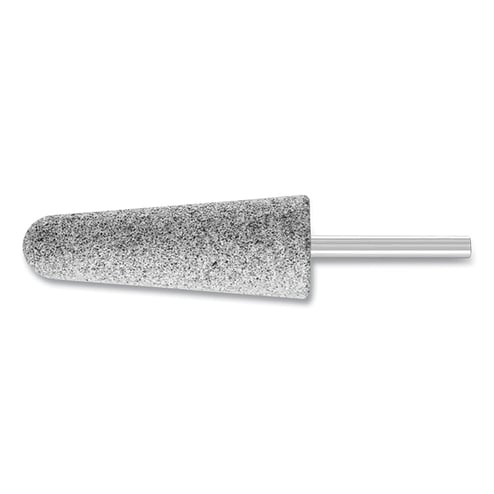

Series A Cast Edge Mounted Point Abrasive Bit A3 1 in Outer dia 1/4 in Shank dia 30 Grit R

Product Description

Due to the special shapes of Series A mounted points, it is possible to grind in a variety of contours. Used for edge grinding and grinding out sharp burrs, sand inclusions, and scale in grey and nodular cast iron in combination with high cutting speeds. Dimensionally stable due to the high bond content. Cost-effective due to high edge stability even on low-speed power tools.

Specifications

Hardness Grade R
Tool Shape A3
Dia. [Nom] 1 in
Quantity 10 EA/BOX
Applicable Materials Gray and Nodular Cast
Width [Nom] 2-3/4 in
Grit 30
Type Cast Edge Mounted Point
Shank Diam [Nom] 1/4 in
Abrasive Material Gray Silicon Carbide
Bond Vitrified
Speed [Max] 16100 RPM
Length [Nom] 1-1/2 in Shank
SKU Group Auto-Id 220330
