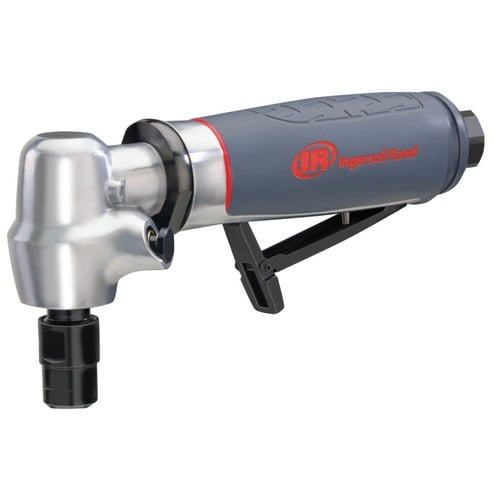

MAX Series Die Grinder, 0.4 hp, 1/4 in NPT(F) and 6 mm Output, 20,000 RPM, 5102MAX


Product Description

Lightweight yet durable design. All ball bearing construction. Safety release throttle. Ergonomic and durable composite housing. 0.4 hp and 20,000/25,000 RPM motor delivers the power you need for the toughest jobs. Enhanced grip design and low-profile throttle lever provides for extended run time without fatigue. MAX Comfort. MAX PERFORMANCE. MAX POWER. Spindle lock feature on the 5102MAX allows for faster abrasive changeovers and lube free design eliminates contamination of work environment. All ball bearing construction.

Specifications

Air Consumption [Max] 6 CFM
Air Consumption [Min] 3 CFM
Applications Descaling; Deburring; Blending
Center to Side Distance 1.18 in
Collet Size 1/4 in NPT(F); 6 mm
Control Type Lever Throttle
Free Speed [Max] 20,000 RPM
Height [Nom] 3.35 in
Hose Size [Nom] 3/8 in
Housing Material Composite
Includes Tool; Collet Nut Wrench; Product Manual
Length [Nom] 7.05 in
Noise Level [Nom] 84.1 dB - 90 dB
Power Cap. [Nom] 1/3 hp; 2/5 hp
Pressure [Nom] 90 psi
Type Angle Die Grinder
Vibration [Max] 3.3 m/sec²
Wt. 1.41 lb
