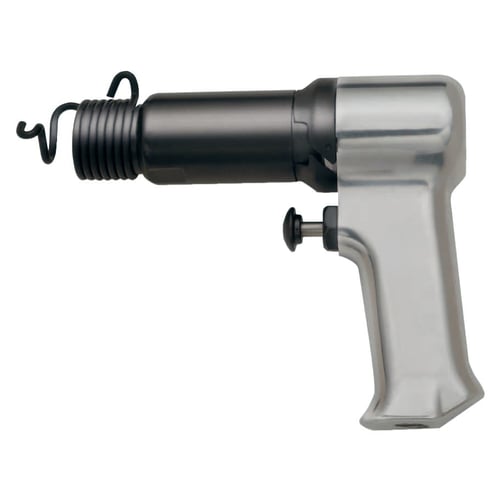

Air Hammers, Super Duty, 3 1/2 in Stroke L, 2,000 blows/min


Product Description

Accurate and easily controlled tease throttle. Standard beehive retainer - allows use of a wide variety of accessories. Model 772 - Unitized "easy-out" throttle valve assembly. Furnished with two retainers for use with a wide variety of accessories.

Specifications

Air Consumption @ Load 15 CFM
Air Consumption [Nom] 3 CFM
Bore Diam [Nom] 3/4 in
Cycle Rate [Max] 2,000 blows/min
Cycle Rate [Nom] 2,000 blows/min
Hose Size [Min] 3/8 in
Inlet Size 1/4 in NPT(F)
Pressure [Nom] 90 psi
Retainer Type Spring
Shank Diam [Nom] 0.401 in
Stroke Length [Nom] 3 1/2 in
Type Super Duty
Wt. 4.08 lb
