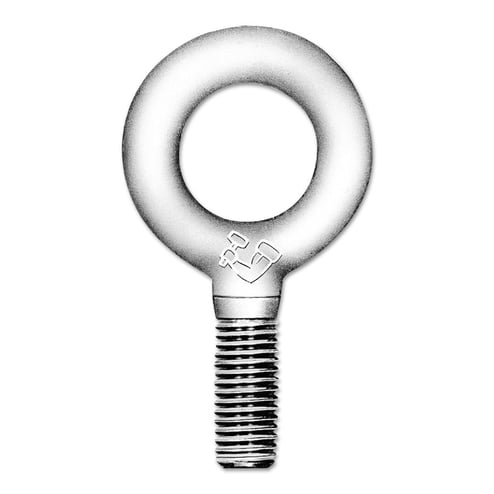

Plain Pattern Eye Bolts, 3/8 x 1 1/4
Product Description
Drop forged are quenched and tempered for optimum strength. Furnished with Unified National Coarse (U.N.C.) threads. Special threads and lengths.
Specifications
| Eye Inner Diam [Nom] | 1 in |
| Eye Outer Size | 1 21/32 in |
| Load Cap. [Nom] | 1300 lb |
| Load [Max] @ Angle | 1,400 lb @ 0 °; 600 lb @ 30 °; 300 lb @ 45 °; 250 lb @ 60 °; 200 lb @ 90 ° |
| Material | Forged Carbon Steel |
| Overall Length [Nom] | 1 1/4 in |
| Quantity | 1 per box |
| Thread - TPI or Pitch | 3/8 in - 16 UNC |
| Type | Eye Bolt |
| Wt. | 0.13 lb |
