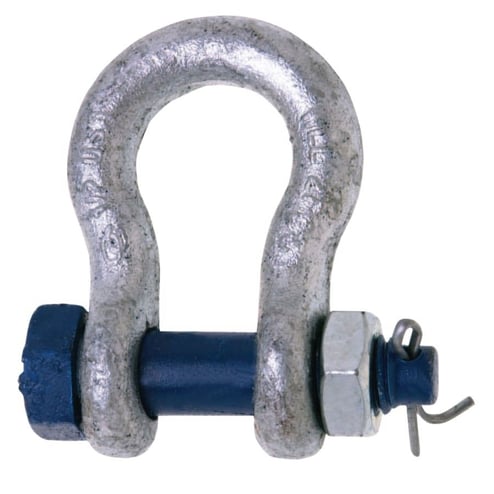

999-G Series Anchor Shackles 7/8 in Bail Size 7 Tons Secured Bolt & Nut
999-G Series Anchor Shackles 7/8 in Bail Size 7 Tons Secured Bolt & Nut
SKU: 193-5391435
Manufacturer Part Number: 5391435
Product Description
Specifications
| BailSize | 7/8 in |
| EyeOuterSize | 2 in |
| Finish | Galvanized Zinc |
| InnerLengthNom | 3 1/8 in |
| InnerWidthNom | 2 1/16 in |
| LockingType | Threaded Pin |
| Material | Forged Carbon Steel |
| OpeningSizeNom | 1 7/16 in |
| PinSizeNom | 1 in |
| SKUGroupAuto-ID | 203796 |
| Type | Secured Bolt & Nut Shackle |
| WorkingLoadLimit | 13,000 lb |
| Wt | 3.3 lb |
| Bail Size | 7/8 in |
| Eye Outer Size | 2 in |
| Finish | Galvanized Zinc |
| Inner Length [Nom] | 3 1/8 in |
| Inner Width [Nom] | 2 1/16 in |
| Locking Type | Threaded Pin |
| Material | Forged Carbon Steel |
| Opening Size [Nom] | 1 7/16 in |
| Pin Size [Nom] | 1 in |
| SKU Group Auto-Id | 203796 |
| Type | Secured Bolt & Nut Shackle |
| Working Load Limit | 13 |
| Working Pressure [Max] | 000 lb |
| Wt. Cap. [Max] | 3.3 lb |
