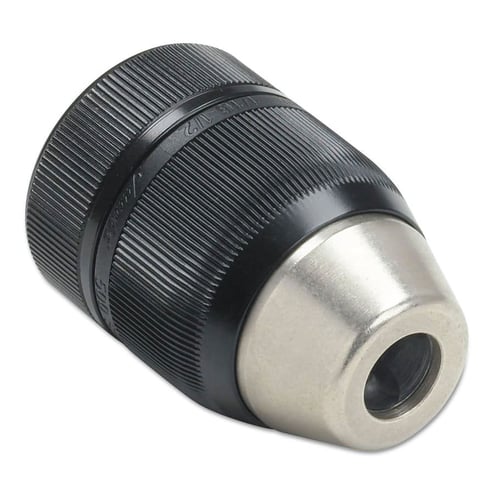

Capacity Hand-Tite Chucks 0.06 in - 0.5 in Threaded 3/8-24


Product Description

Split bite jaw increases grip over standard bite chucks by providing more contact with the bit. Superior gripping force provides high mechanical advantage to convert hand tightening torque into superior bit gripping force. Hammerlock® mechanism is a positive locking mechanism that prevents loosening in hammer and other high vibration applications. Anti-lock nut prevents chuck from lock opening. Precision operation that meet or exceed stringent din run-out and dimensional specifications. Ergonomic design with material and surface finish combinations that result in increased comfort and performance. Constructed of high performance material to maximize durability.

Specifications

BitBladeMountingSizeSymbol Round
CapacityMax 0.5 in
CapacityMin 0.06 in
ChuckSize 1/2 in
Finish Nickel
HousingDiam 1.68 in
KeySize 3/8 in
Mechanism Hammerlock
Mounting Threaded 3/8-24
OverallLengthMax 2.9 in
OverallLengthMin 2.9 in
SKUGroupAuto-ID 400839
Type Chuck
Wt 0.63 lb
Bit/Blade Mounting Size Symbol Round
Capacity [Max] 0.5 in
Capacity [Min] 0.06 in
Chuck Size 1/2 in
Finish Nickel
Housing Diam 1.68 in
Key Size 3/8 in
Mechanism Hammerlock
Mounting Threaded 3/8-24
Overall Length [Max] 2.9 in
Overall Length [Min] 2.9 in
SKU Group Auto-Id 400839
Type Chuck
Wt. 0.63 lb
