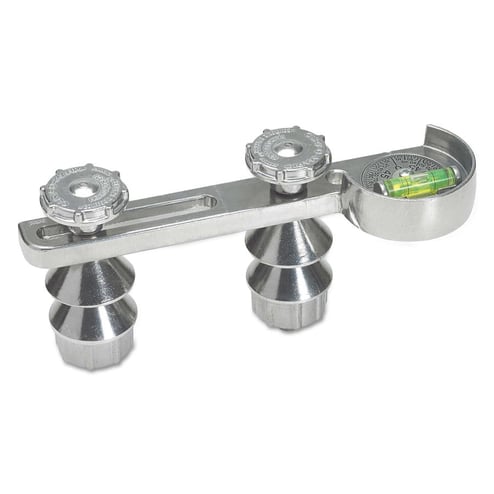

Flange Level 9-1/4 in L 1 Vial Aluminum

Product Description

Used as a dial degree utility level or two-holing flange alignment. Protective housing contains an adjustable DSL. Fitted with a threaded , self-aligning conical spacer and conical nut and bolt units for fastening to a pipe flange. One nut and bolt is stationary, other slides.

Specifications

Height [Nom] 2 in
Body Material Aluminum
Accuracy 2.5 degrees
Width [Nom] 1/2 in
Wt. 0.38 lb
Material Aluminum
Length [Nom] 9-1/4 in
No. of Vials 1
Thickness [Nom] 1/2 in
HeightNom 2 in
WidthNom 1/2 in
Material Aluminum
Includes (2) Threaded, Self-Aligning Conical Spacers;(2) Conical Nuts;(2) Bolt Units
LengthNom 9-1/4 in
Type Dial-Angle-Flange
SKUGroupAuto-ID 181340
Accuracy 2.5 degrees
NoofVials 1
Wt 0.38 lb
BodyMaterial Aluminum
ThicknessNom 1/2 in
