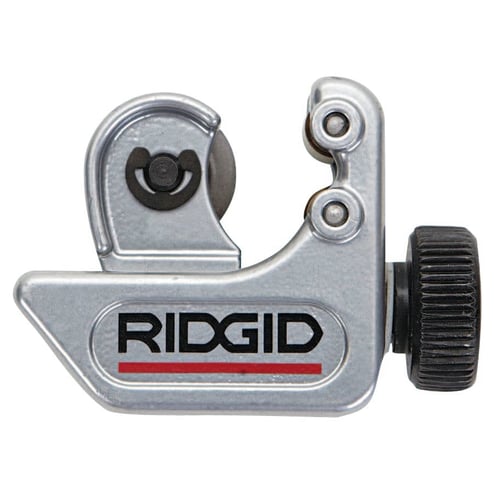

Close Quarters Tubing Cutter, Model 104, 3/16 in to 15/16 in Cutting Capacity


Product Description

Specifically designed for use in restricted spaces on small diameter, hard and soft copper, aluminum, brass and plastic tubing. Rollers include grooves for close-to-flare cuts on models 101, 101J, and 118. Strong, lightweight slide and wheel housing, and large knurled feed screw knob give easy control of cutting pressure for clean cuts. Models 117 and 118 include a self-feeding AUTOFEED® cutter wheel that automatically cuts after tightening the knob only once. Model 118 features a special knob for easier tightening of the feed screw. Model 101-ML is for multilayer tubing only.

Specifications

Applicable Materials Aluminum; Brass; Hard and Soft Copper; Plastic
Applications Tubing
Blade Material Steel
Cut Type Wheel Cut
Cutting Cap. [Max] 15/16 in
Cutting Cap. [Min] 3/16 in
Cutting Direction Straight
Handle Type Screw Knob
Includes Spare Cutter Wheel Not Included
Mechanism Adjustable Screw
No. of Wheels 1
Std. Wheel E-3469
